2G AWD FUELPUMP
The 2G AWDFP connector is from the original supplier. It is the wiring harness connector that plugs into the bulkhead at
the fuel tank. This only fits the 2G AWD. The FWD uses a different connector. These are not available as a pigtail,

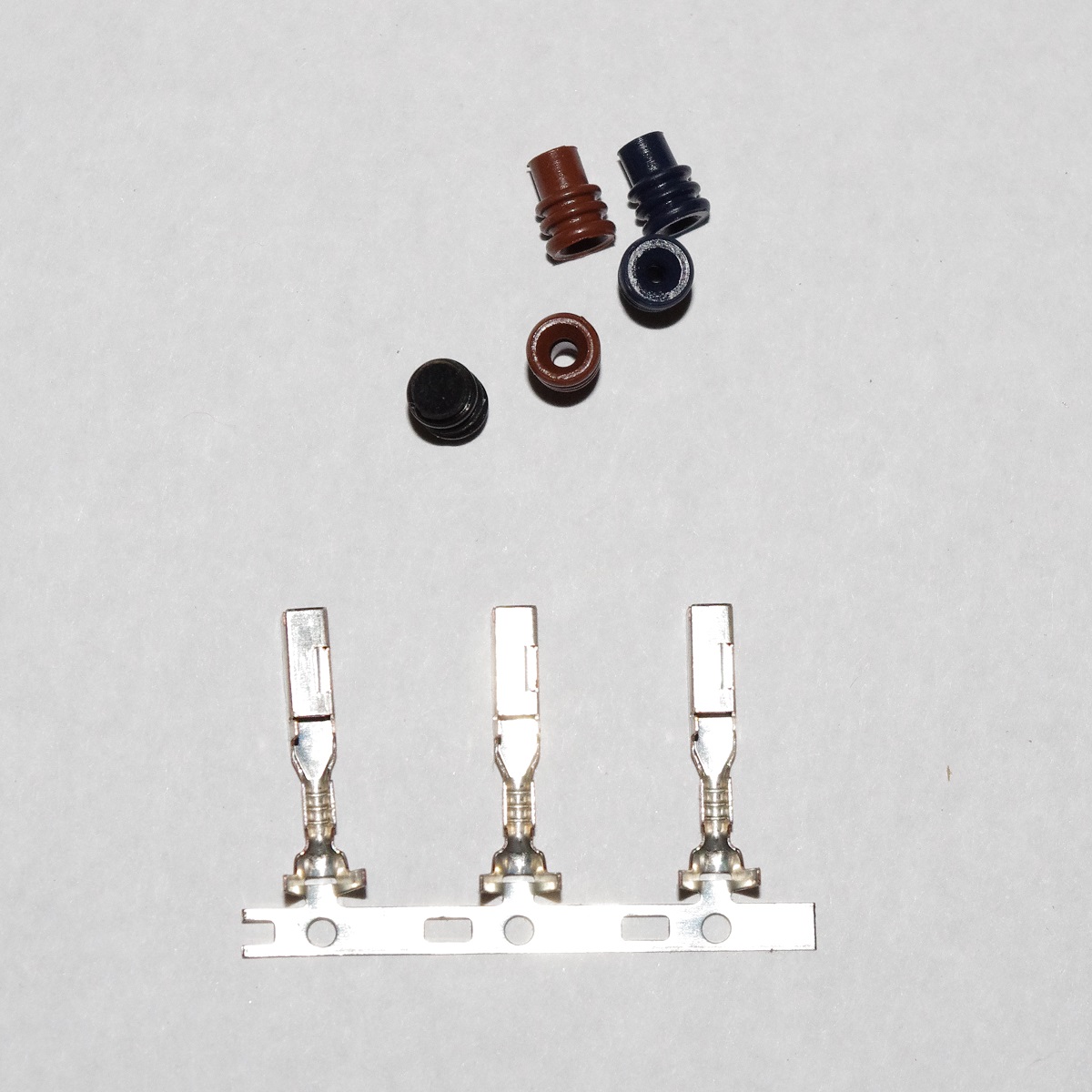

but will include terminals, seals and a hole plug. It will come with spare seals to use either the OE wire size, or a larger
wire for the fuel pump power.
| Seal Color |
Wire Diameters (mm) |
| Brown |
2.0 - 2.9 |
| Blue |
1.5 - 2.0 |
| Red |
1.1 - 1.5 |
Where used:
DSM 1990:
DSM 1991-1994:
DSM 1995-1996: Fuel Pump Connector (AWD only)
DSM 1997-1999: Fuel Pump Connector (AWD only)
CSM:
Galant:
3S:
Evo:
